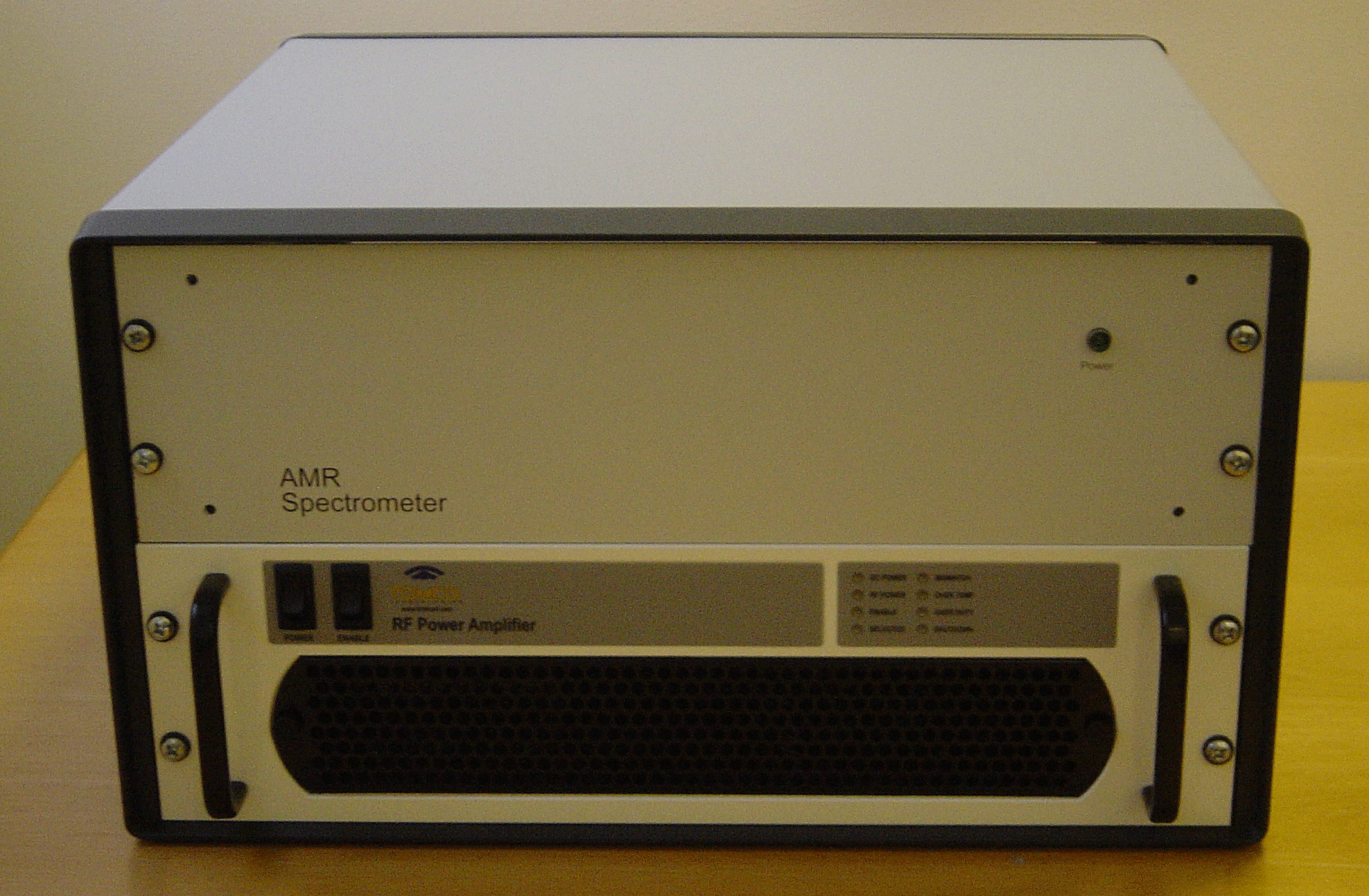

R2 Spectrometer
The R2 Spectrometer is an easy to use, low cost spectrometer board for simple NMR applications and can be configured in a variety of different formats.
Low Cost FPGA based Spectrometer
Electronics for NMR applications
Capable of Common NMR experiments including CPMG, Solid/Spin Echo, Inversion Recovery and FID.
Frequency Operation up to 150MHz with Optional Upmix
Two RF Output Channels
Single Receiver Channel
High Capacity Data Memory
Optional 3D Gradient Channel Board for MRI Applications
19" Rack Mounted Case, or Customised Cases On Request (Eurocard Sized, 100mmx160mm)
USB 2.0 Communications to Host PC
Dummy Scans, External Mains Trigger and I/O Capability
Precise Repetition Times and Pulse Sequence Timing Control
Fully Pulse Programmable via the OpenNMR Software Suite
Customised Firmware Available on Request
Capable of Common NMR experiments including CPMG, Solid/Spin Echo, Inversion Recovery and FID.
Frequency Operation up to 150MHz with Optional Upmix
Two RF Output Channels
Single Receiver Channel
High Capacity Data Memory
Optional 3D Gradient Channel Board for MRI Applications
19" Rack Mounted Case, or Customised Cases On Request (Eurocard Sized, 100mmx160mm)
USB 2.0 Communications to Host PC
Dummy Scans, External Mains Trigger and I/O Capability
Precise Repetition Times and Pulse Sequence Timing Control
Fully Pulse Programmable via the OpenNMR Software Suite
Customised Firmware Available on Request
Contact
Us for Prices, Delivery Times and Additional
Specifications/Information.
